Understanding the User Interface

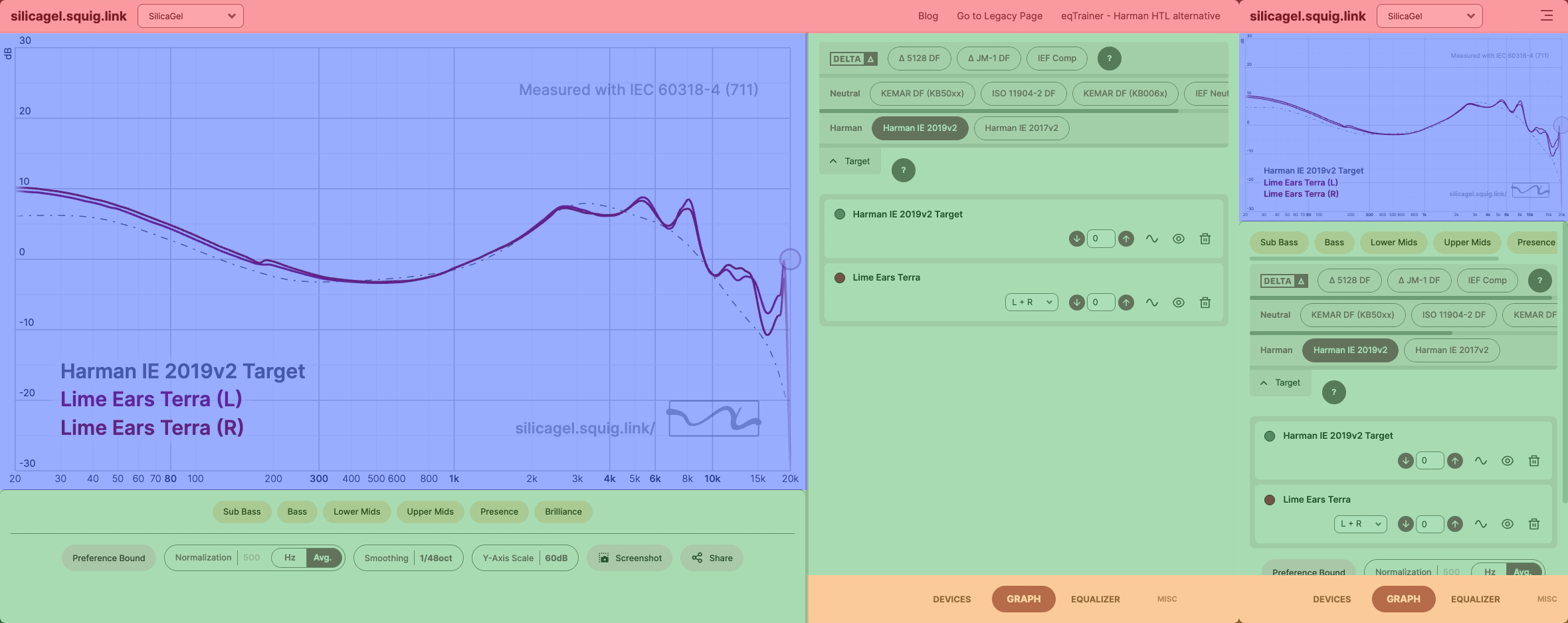

UI screenshot with color overlay

The user interface of the modernGraphTool can be divided into four areas:

  • 🔴 Top Bar: The area where the modernGraphTool logo and various link buttons are located.
  • 🔵 Graph Area: The area where various data are displayed in graph form according to user manipulation.
  • 🟢 Tool Area: The area where various tools for manipulating data and changing the graph are placed.
  • 🟠 Navigation Bar: The area that displays a list of various tools and allows each tool to be displayed in the 'Tool Area'.

For devices with a screen width of 1000px or more, the 'Desktop UI' is applied.

  • The 'Graph Area' is placed on the left, and the 'Tool Area' and 'Navigation Bar' are placed on the right.
  • You can adjust the ratio between the 'Graph Area' and 'Tool Area' by dragging the vertical line dividing them left or right.
  • The tool listing the data displayed on the graph moves to the bottom of the 'Graph Area'.

On the other hand, for mobile devices with a narrow screen width, the 'Mobile UI' is applied.

  • The 'Tool Area' and 'Navigation Bar' are placed sequentially below the 'Graph Area'.
  • The ratio between the 'Graph Area' and 'Tool Area' cannot be adjusted.
  • The tool listing the data displayed on the graph is merged into the 'Tool Area'.
